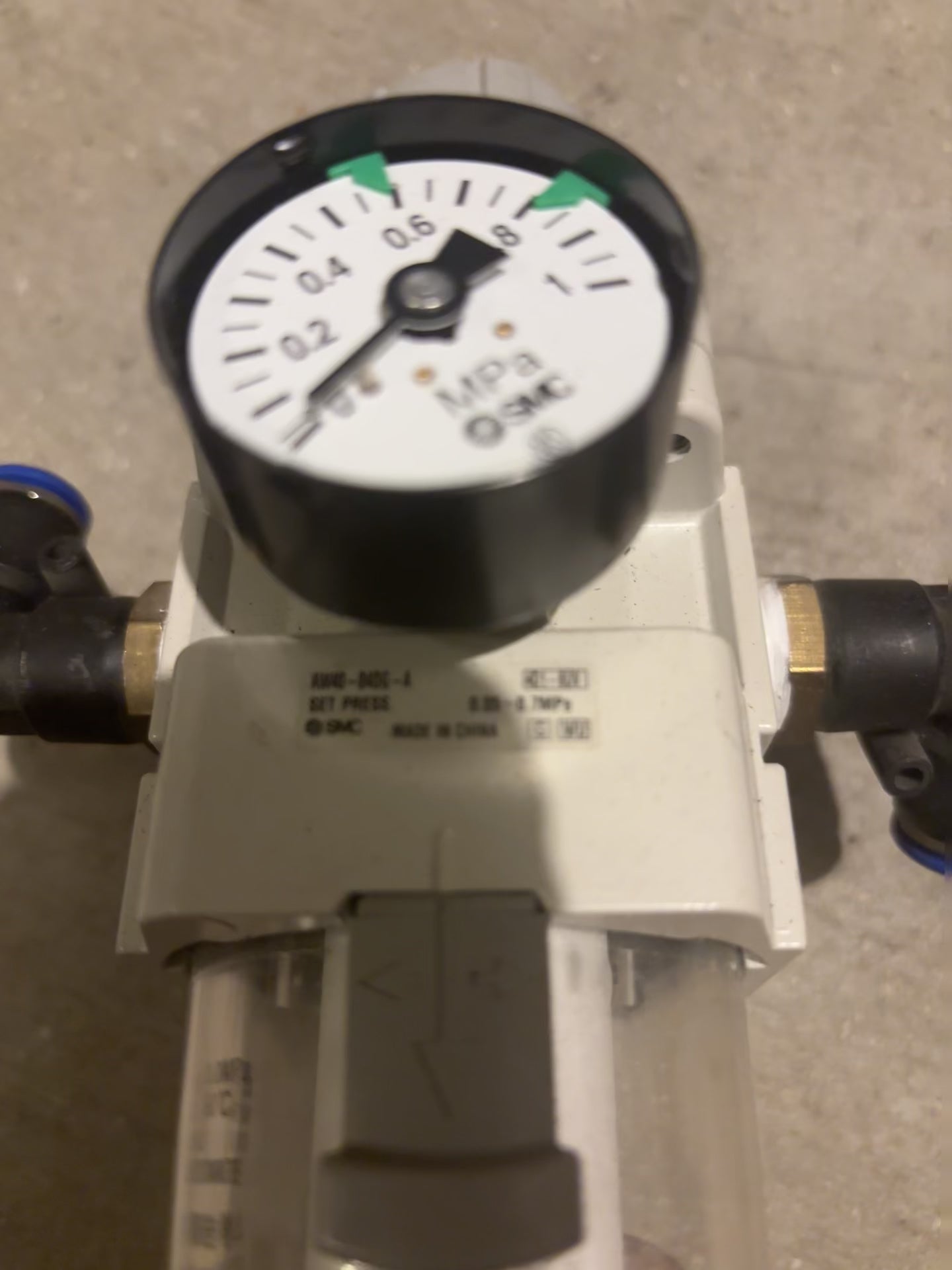

SMC AW40-04DG-A Modular Filter Regulator with Gauge 1/2" NPT
$80.00
The SMC AW40-04DG-A is a modular filter-regulator from SMC's AW40 series, combining air filtration and pressure regulation in a single compact unit. With a built-in gauge, 1/2" NPT port connection, and a 5μm element, it provides clean, stable air supply to pneumatic systems — making it essential for protecting cylinders, valves, and other downstream components in industrial automation, machine building, and process control environments.
- Brand: SMC
- Series: AW40
- Part Number: AW40-04DG-A
- Type: Modular Filter-Regulator with Gauge
- Condition: New
Technical Specifications
| Specification | Value |
|---|---|
| Port Size | 1/2" NPT |
| Filter Element Size | 5 μm (standard) |
| Bowl Capacity | 40 mm body series |
| Pressure Gauge | Included (D = with gauge) |
| Max. Operating Pressure | 1.0 MPa (145 PSI) |
| Set Pressure Range | 0.05–0.85 MPa (7.25–123 PSI) |
| Proof Pressure | 1.5 MPa (218 PSI) |
| Flow Characteristics | Up to 3,000 L/min (ANR) |
| Fluid | Compressed air (non-lubricated) |
| Ambient & Fluid Temperature | 5°C to 60°C (no freezing) |
| Bowl Material | Polycarbonate (with auto drain option) |
| Body Material | Zinc die-cast |
| Drain Type | Manual (A = standard) |
| Mounting | Modular / bracket mount |
| Weight | Approx. 500 g |
| Certifications | CE, RoHS compliant |
