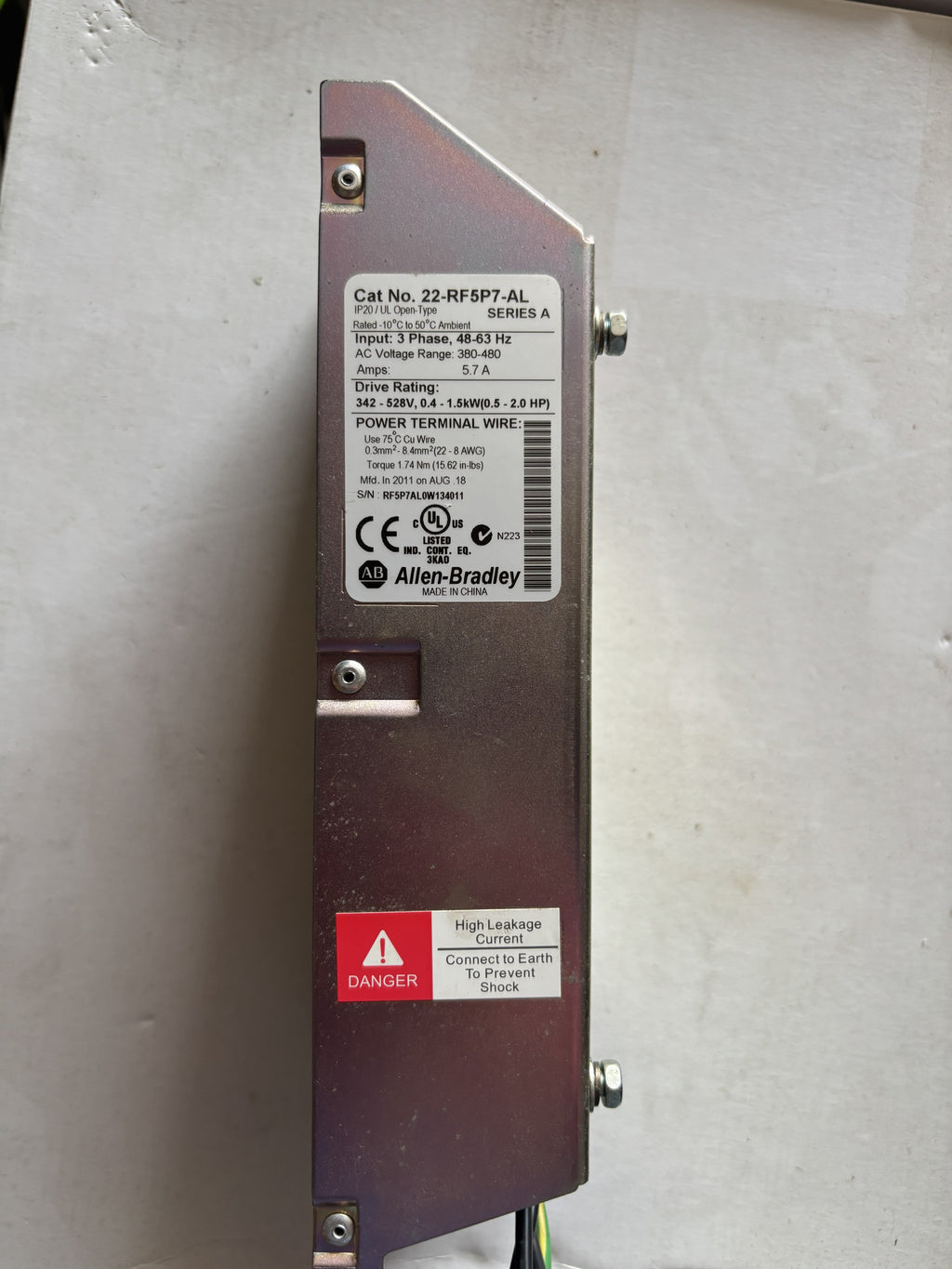

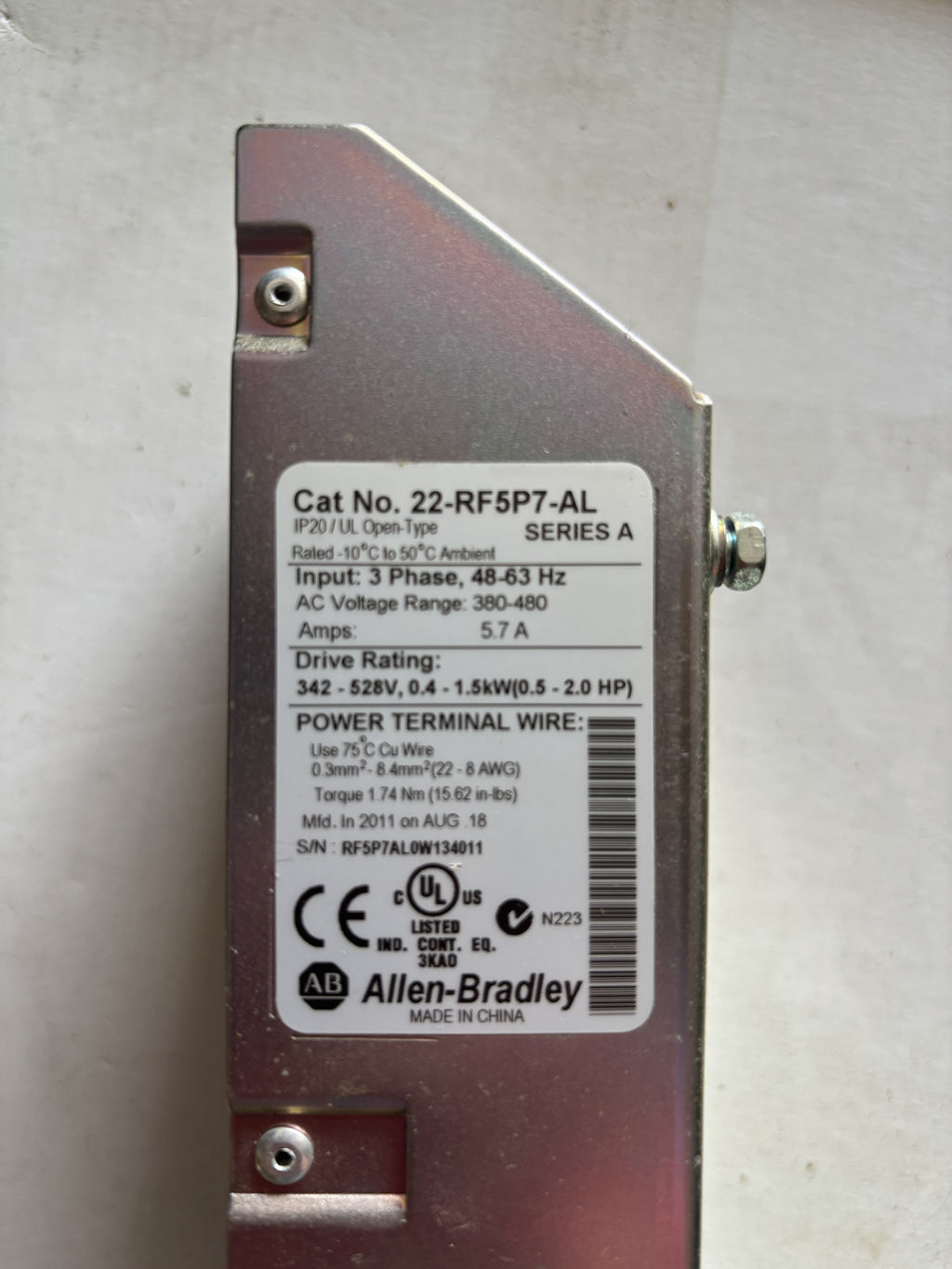

Allen-Bradley 22-RF5P7-AL EMC Line Filter for PowerFlex 4/40
$67.00
The Allen-Bradley 22-RF5P7-AL is an EMC/RFI line filter designed for use with Rockwell Automation PowerFlex 4 and PowerFlex 40 variable frequency drives. It suppresses conducted electromagnetic interference on the input power line, helping your installation meet CE and other EMC compliance requirements. A must-have for noise-sensitive environments including precision manufacturing, process control, and facilities with strict EMC standards.
- Brand: Allen-Bradley (Rockwell Automation)
- Part Number: 22-RF5P7-AL
- Compatible Drives: PowerFlex 4 / PowerFlex 40
- Type: EMC/RFI Line Filter
- Condition: Used
Technical Specifications
| Specification | Value |
|---|---|
| Rated Current | 5.7A |
| Input Voltage | 120/240 VAC, 1-phase or 3-phase |
| Frequency | 50/60 Hz |
| Leakage Current | <3.5 mA |
| Attenuation | Class A / Class C2 EMC compliance |
| Compatible Drives | PowerFlex 4 (22A), PowerFlex 40 (22B) |
| Mounting | DIN rail or panel mount |
| Operating Temperature | -10°C to +50°C |
| Certifications | CE, UL |
