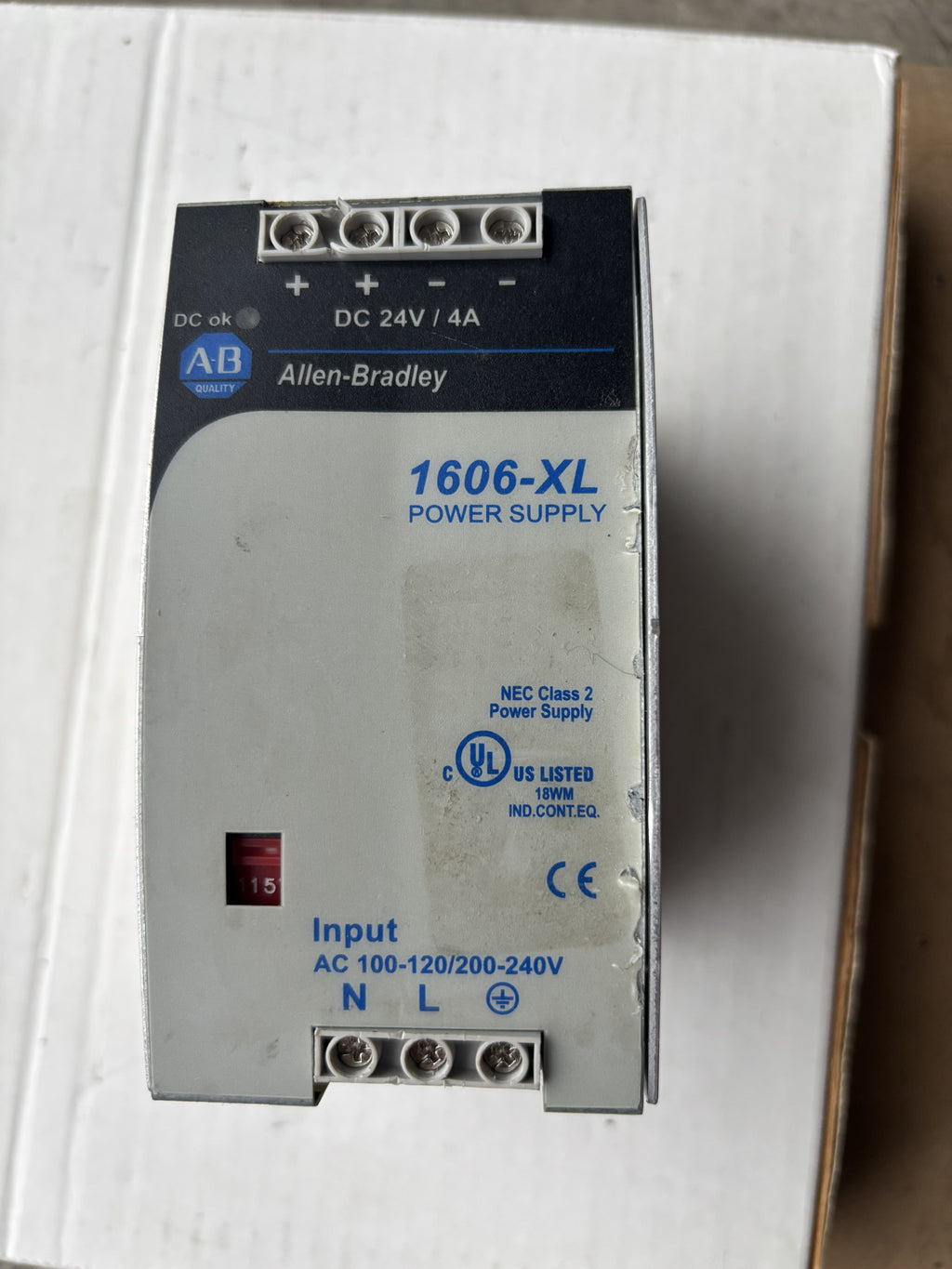

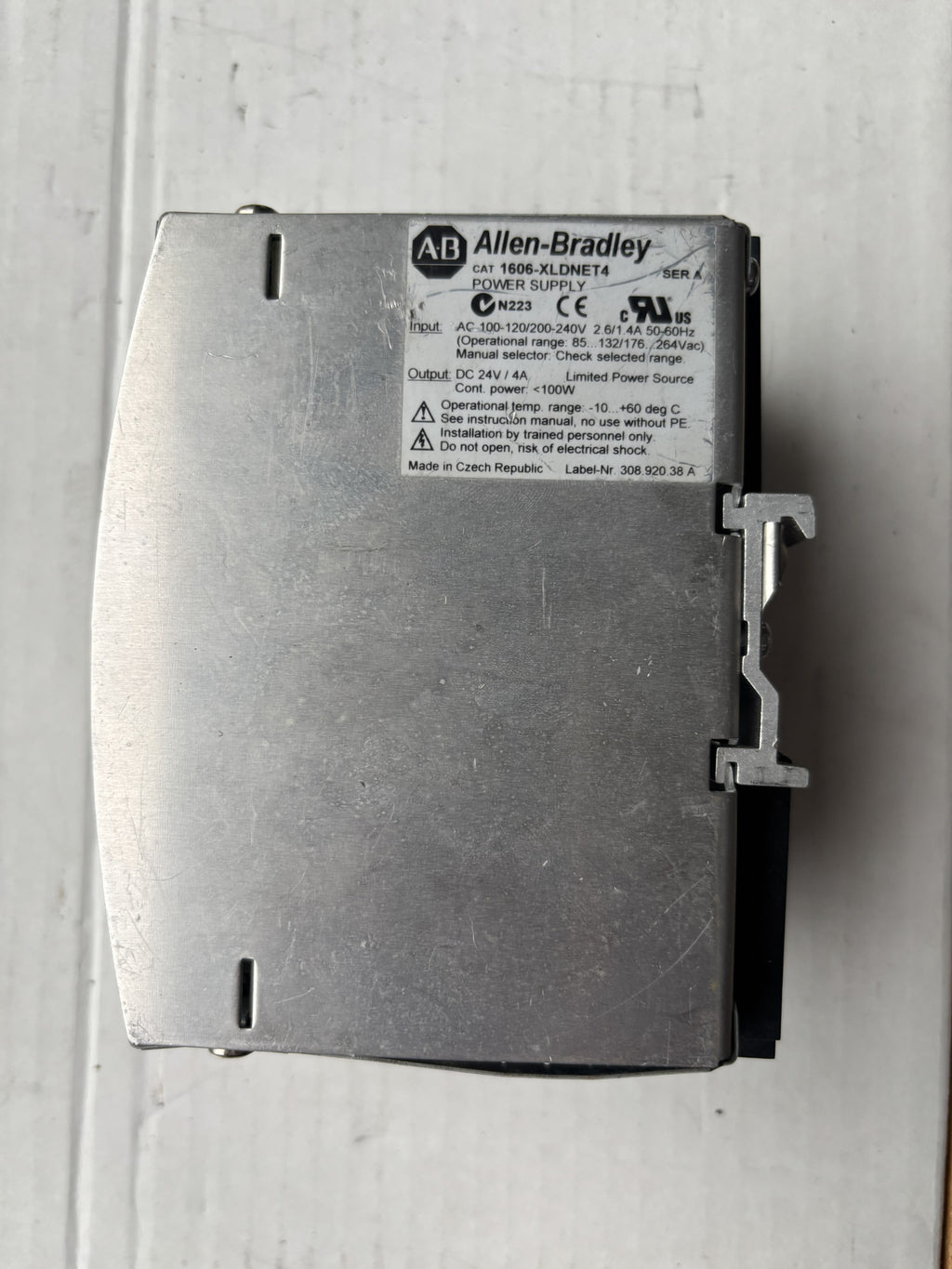

Allen Bradley 1606-XLDNET4 /A Industrial Power Supply
$99.00
The Allen Bradley 1606-XLDNET4 /A is a high-performance DIN rail industrial power supply from Rockwell Automation's trusted 1606-XLD series. With worldwide AC and DC input capability, 88% efficiency, and robust EMC design, this unit delivers reliable 24V/4A DC power for PLCs, control systems, and automation equipment — even in the harshest environments.
- Brand: Allen Bradley (Rockwell Automation)
- Part Number: 1606-XLDNET4 /A
- Series: 1606-XLD
- Type: Switching Industrial Power Supply
- Condition: Used Industrial Part
Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage (AC) | 100–120 / 200–240 VAC (switchable), 47–63 Hz |
| Input Voltage (DC) | 210–375 VDC |
| Wide-Range Input | 95–264 VAC at low/moderate loads (up to 2A) in 230V switch position |
| Input Current | <2.0A (115V position) / <1.1A (230V position) |
| Inrush Current | Typ. <15A at 264VAC cold start |
| Output Voltage | 24V DC (+5% / −1%) |
| Output Current | 4A continuous (at 176–264VAC or 210–375VDC) |
| Output Power | 100 VA (Limited Power Source) |
| Efficiency | Typ. 88% (at 230VAC, 24V/4A) |
| Ripple / Noise | <25 mVPP (20 MHz bandwidth) |
| Overvoltage Protection | Typ. 29V |
| Overload / Short Circuit | Protected; no switch-off at overload |
| Parallel Operation | Yes |
| Hold-Up Time | >20 ms at 196VAC, 24V/4A |
| Operating Temperature | -10°C to +70°C (>60°C derating applies) |
| Storage Temperature | -25°C to +85°C |
| Dimensions (W x H x D) | 65mm x 124mm x 102mm (+ DIN rail) |
| Weight | 620g |
| Mounting | DIN Rail |
| EMC | Radiated EMI below EN50081-1; Transient resistant per VDE 0160/W2 (750V/1.3ms) |
| Status Indicator | Green LED (goes out at Vout <12V) |
| Wire Size | Stranded/Solid 20–10 AWG (0.5–6 mm²) |
