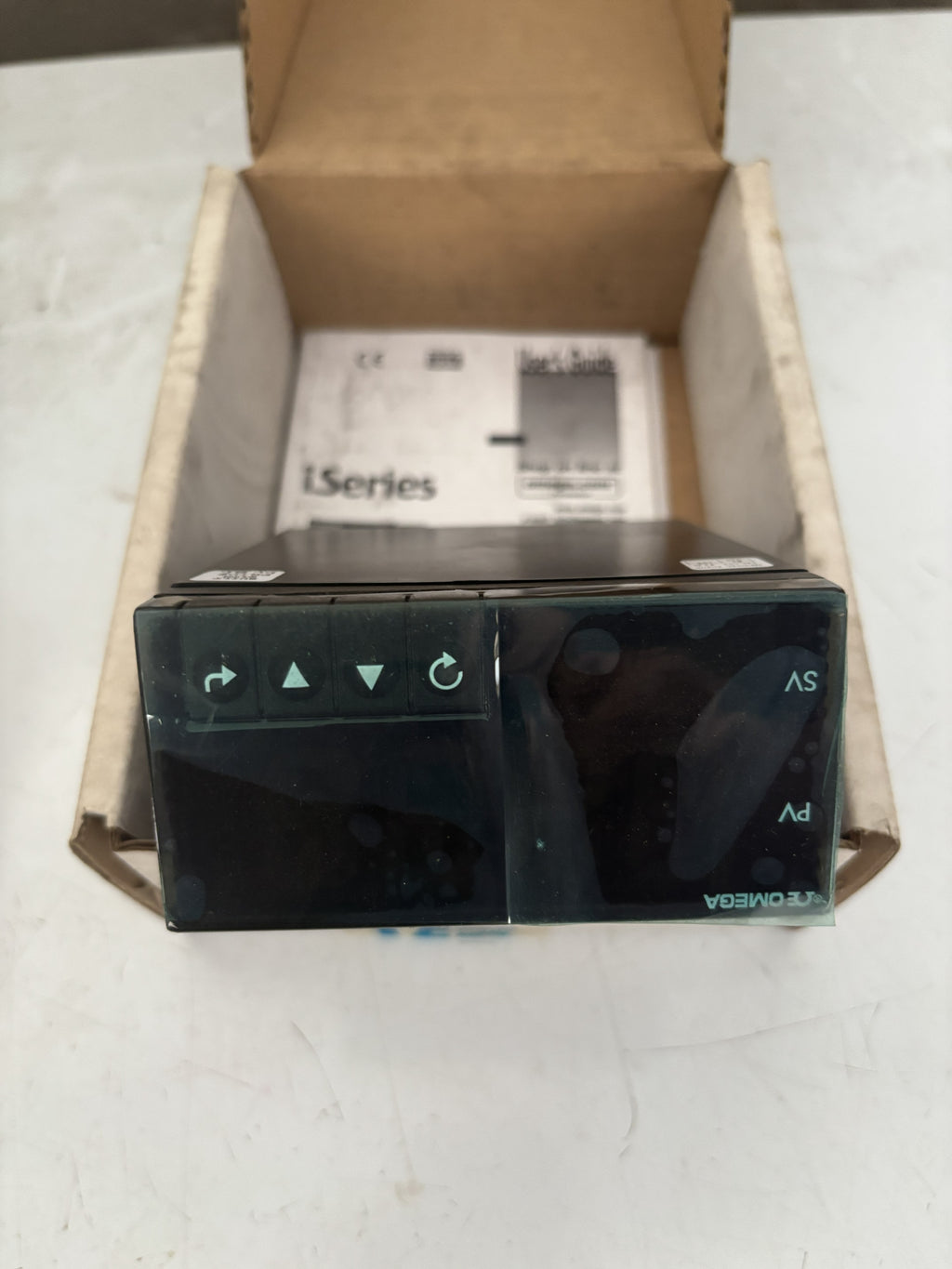

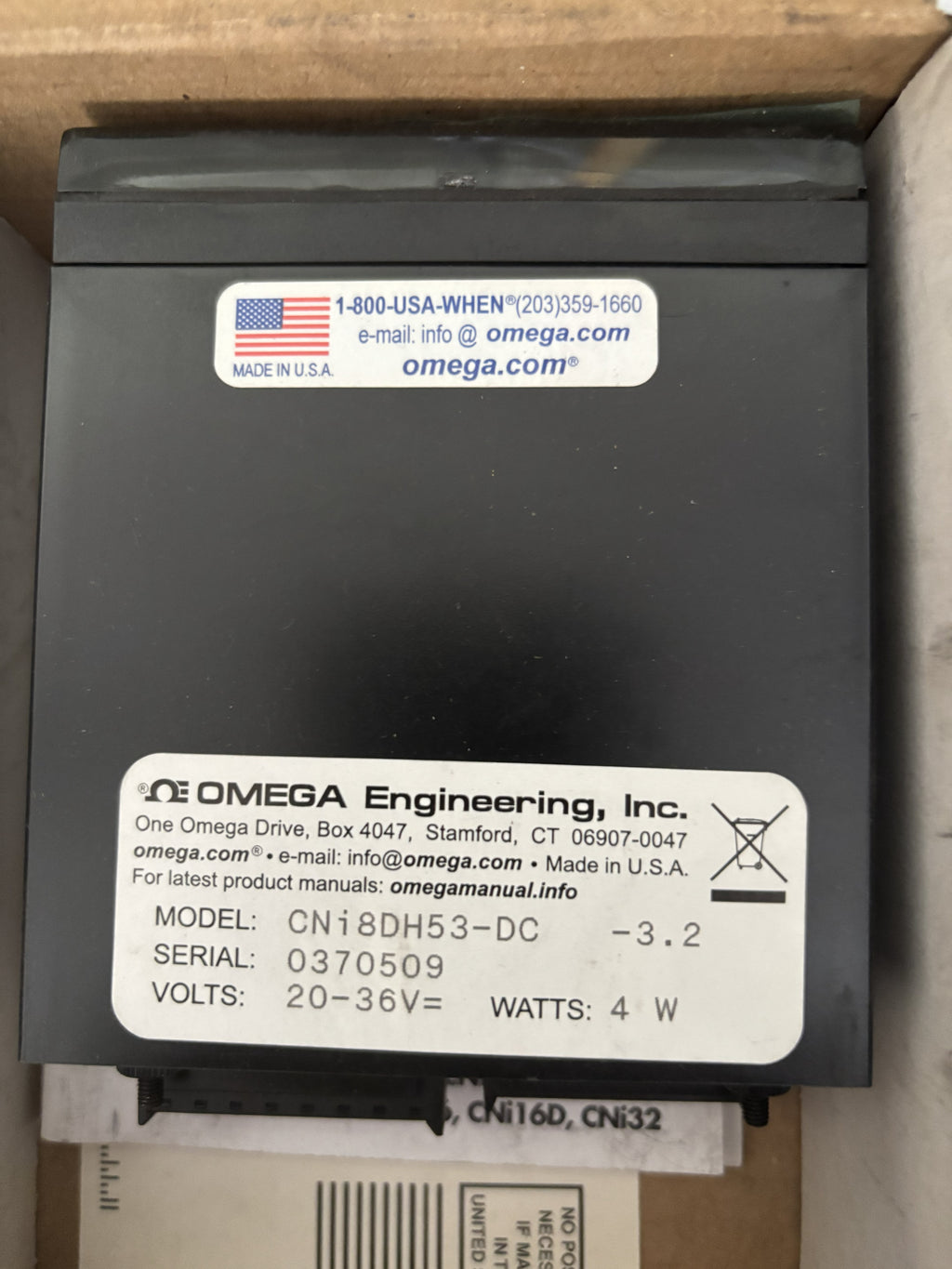

Omega CNI8DH53-DC 1/8 DIN Temperature & Process Controller
$120.00
Skip to product information
Omega CNI8DH53-DC 1/8 DIN Temperature & Process Controller
$120.00
The Omega CNI8DH53-DC is a versatile 1/8 DIN temperature and process controller from Omega Engineering's CNi8 series. Featuring dual display, PID auto-tuning, DC power input, and multiple input/output options, it delivers precise closed-loop control for demanding industrial applications including furnaces, ovens, plastics processing, packaging, and laboratory equipment. Its compact form factor and intuitive front-panel programming make it a go-to choice for engineers who need reliable performance without complexity.
- Brand: Omega Engineering
- Series: CNi8
- Part Number: CNI8DH53-DC
- Type: 1/8 DIN Temperature & Process Controller
- Condition: New
Technical Specifications
| Specification | Value |
|---|---|
| Size | 1/8 DIN (96 x 48 mm panel cutout) |
| Power Supply | DC (12–36 VDC) |
| Display | Dual 4-digit LED (process value & set point) |
| Input Types | Thermocouple (J, K, T, E, R, S, B), RTD (Pt100), DC voltage/current process signals |
| Control Method | PID / ON-OFF with auto-tuning |
| Output 1 | Relay (SPDT, 5A @ 240 VAC) |
| Output 2 | Relay or SSR drive (model dependent) |
| Alarm Outputs | 2 independent alarms |
| Sampling Rate | 4 times/second |
| Control Accuracy | ±0.1% full scale |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 10–90% RH (non-condensing) |
| Panel Protection | IP65 (front panel) |
| Dimensions (W x H x D) | 48 x 96 x 127 mm |
| Certifications | CE, UL, cUL |
