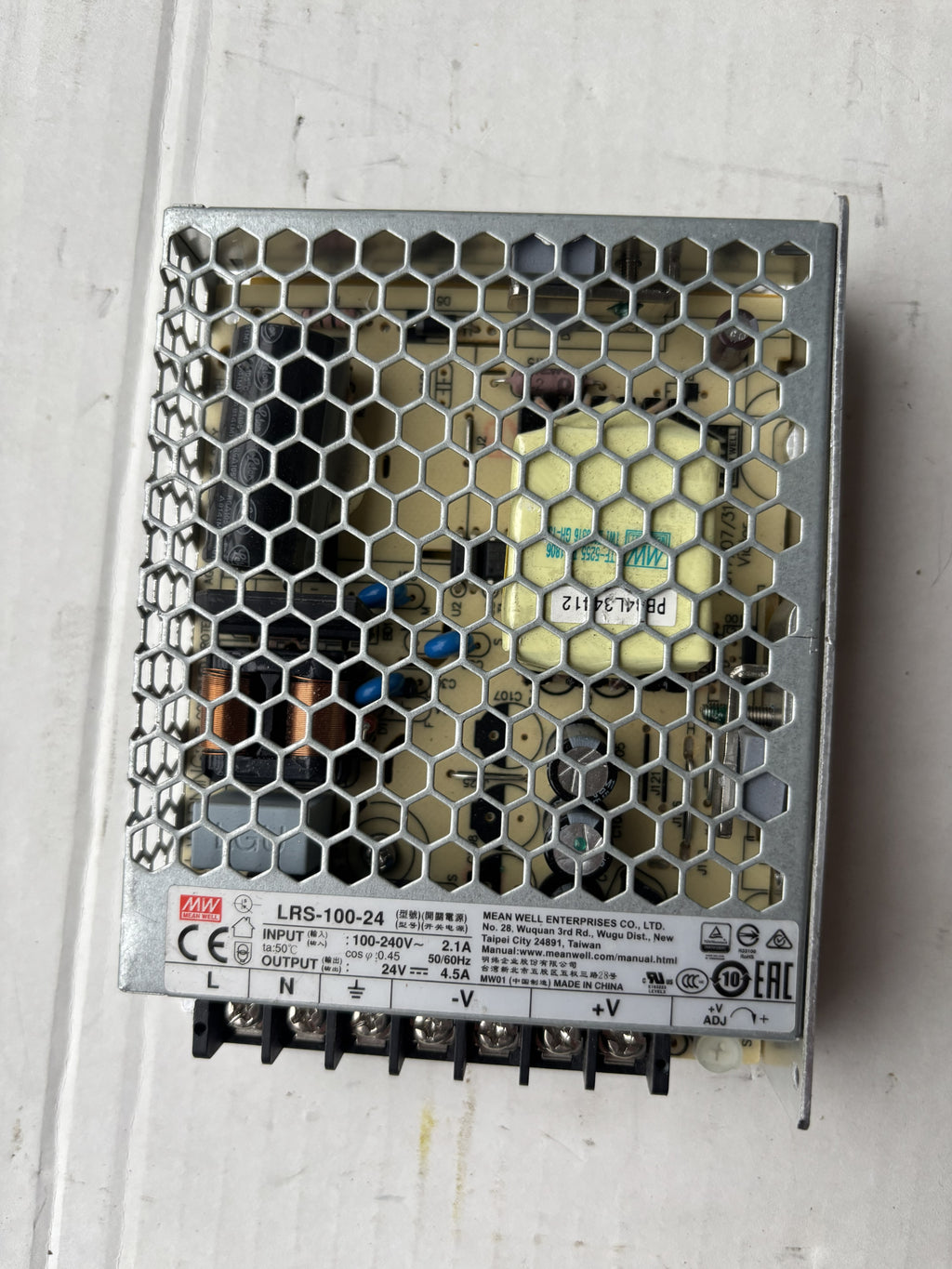

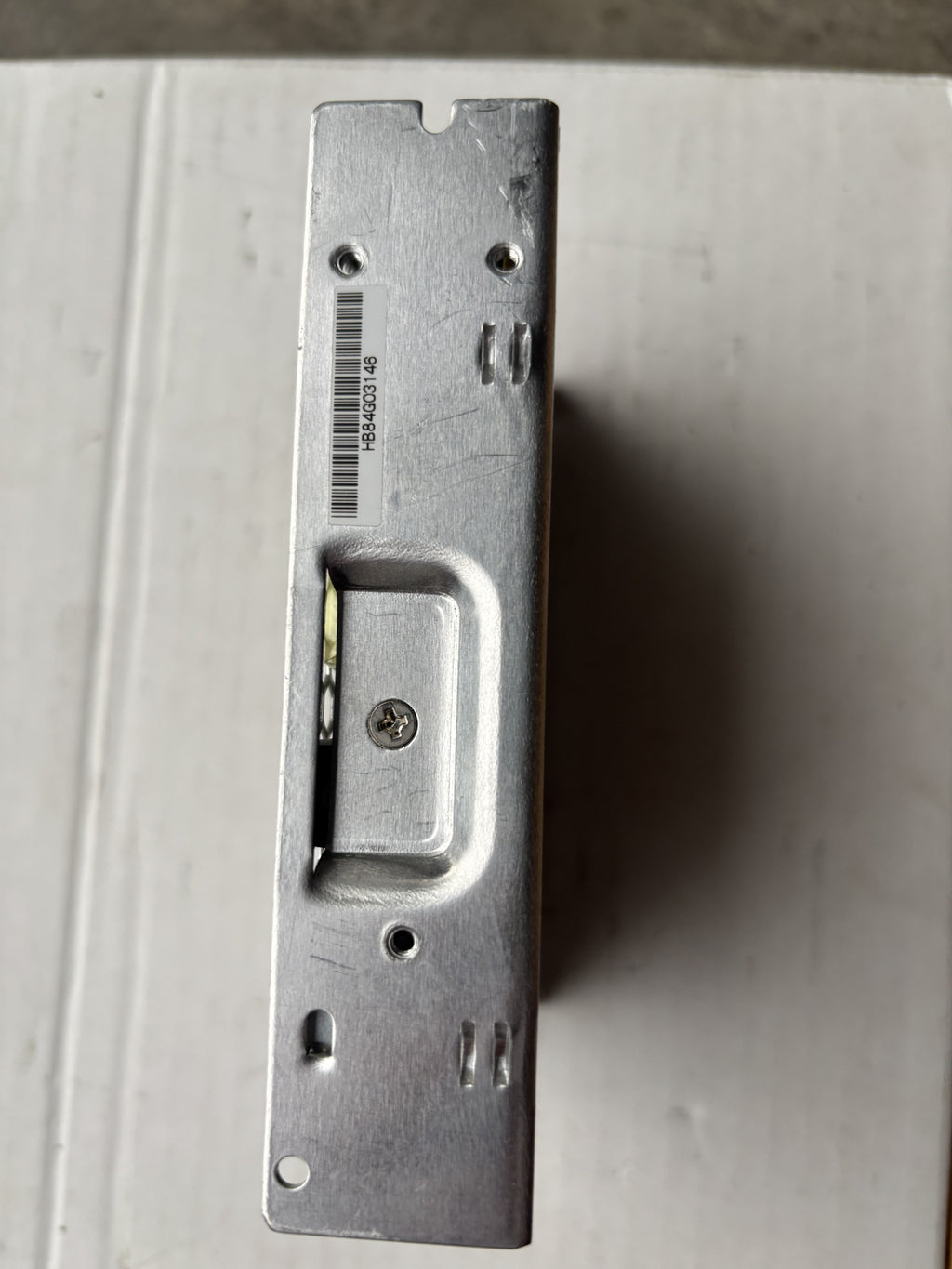

Mean Well LRS-100-24 AC/DC Power Supply 24V 100W
$30.00
The Mean Well LRS-100-24 is a slim, high-efficiency single-output switching power supply from the industry-trusted LRS-100 series. With a universal AC input, 90% typical efficiency, and a compact 129×97×30mm profile, it's engineered for tight industrial enclosures, automation panels, and DIN rail installations. Backed by an impressive 3.3M+ hour MTBF, this unit delivers rock-solid 24V DC power for the long haul.
- Brand: Mean Well
- Series: LRS-100
- Part Number: LRS-100-24
- Type: Single Output Switching AC/DC Power Supply
- Condition: New
Technical Specifications
| Specification | Value |
|---|---|
| Output Voltage | 24V DC |
| Rated Output Current | 4.5A |
| Current Range | 0 – 4.5A |
| Rated Output Power | 108W |
| Output Voltage Adj. Range | 21.6 – 28.8V |
| Ripple & Noise (max.) | 150 mVp-p |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Input Voltage (AC) | 85–264 VAC (universal) |
| Input Voltage (DC) | 120–373 VDC |
| Input Frequency | 47–63 Hz |
| AC Input Current | 1.9A @ 115VAC / 1.2A @ 230VAC (typical) |
| Inrush Current | 50A cold start @ 230VAC (typical) |
| Efficiency (typical) | 90% |
| Hold-Up Time | 55 ms @ 230VAC / 10 ms @ 115VAC (full load) |
| Setup / Rise Time | 500 ms / 30 ms @ 230VAC (full load) |
| Overload Protection | 110–150% rated power; hiccup mode, auto-recovery |
| Overvoltage Protection | 28.8–33.6V; shutdown, re-power to recover |
| Operating Temperature | -30°C to +70°C (with derating) |
| Storage Temperature | -40°C to +85°C |
| Working Humidity | 20–90% RH non-condensing |
| Temperature Coefficient | ±0.03%/°C (0–50°C) |
| Vibration | 10–500 Hz, 5G, 10 min/cycle, 60 min per X/Y/Z axis |
| MTBF | 3,348,900 hrs min. (Telcordia SR-332); 677,400 hrs min. (MIL-HDBK-217F @ 25°C) |
| Dimensions (L x W x H) | 129 x 97 x 30 mm |
| Weight | 0.33 kg |
| Safety Standards | UL 62368-1, TUV EN62368-1, GB 4943.1, BSMI, EAC, AS/NZS62368-1, BIS IS13252 |
| EMC Emission | EN55032 Class B, EN61000-3-2/-3 |
| EMC Immunity | EN61000-4-2/3/4/5/6/8/11, EN61000-6-2 (heavy industry) |
