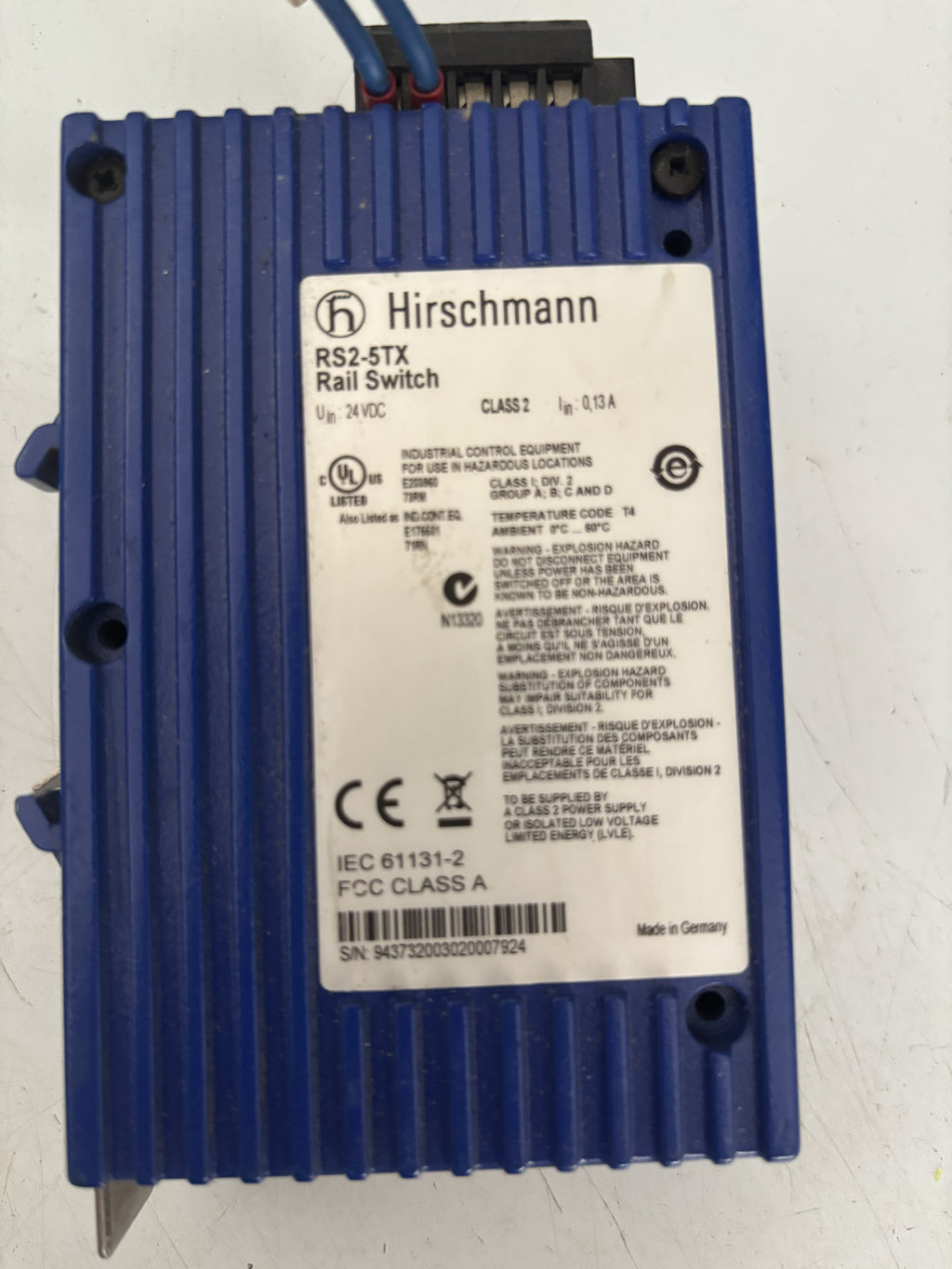

Hirschmann RS2-5TX Industrial Ethernet Switch 5-Port
$99.00
The Hirschmann RS2-5TX is a rugged 5-port unmanaged industrial Ethernet switch from Hirschmann's RAIL family, purpose-built for demanding factory automation and process control environments. With DIN rail mounting, wide temperature tolerance, and 10/100 Mbps auto-negotiation on all ports, it provides reliable plug-and-play network connectivity where standard office switches simply won't survive. Ideal for PLCs, HMIs, drives, and other industrial devices requiring deterministic, noise-immune communication.
- Brand: Hirschmann (Belden)
- Series: RAIL Switch 2
- Part Number: RS2-5TX
- Type: 5-Port Unmanaged Industrial Ethernet Switch
- Condition: Used
Technical Specifications
| Specification | Value |
|---|---|
| Number of Ports | 5 x RJ45 (10/100BASE-TX) |
| Port Speed | 10/100 Mbps, auto-negotiation, auto-MDI/X |
| Switching Method | Store-and-forward |
| Management | Unmanaged (plug-and-play) |
| Power Supply Input | 24 VDC (18–32 VDC) |
| Power Consumption | Max. 3.5W |
| Redundancy | None (unmanaged) |

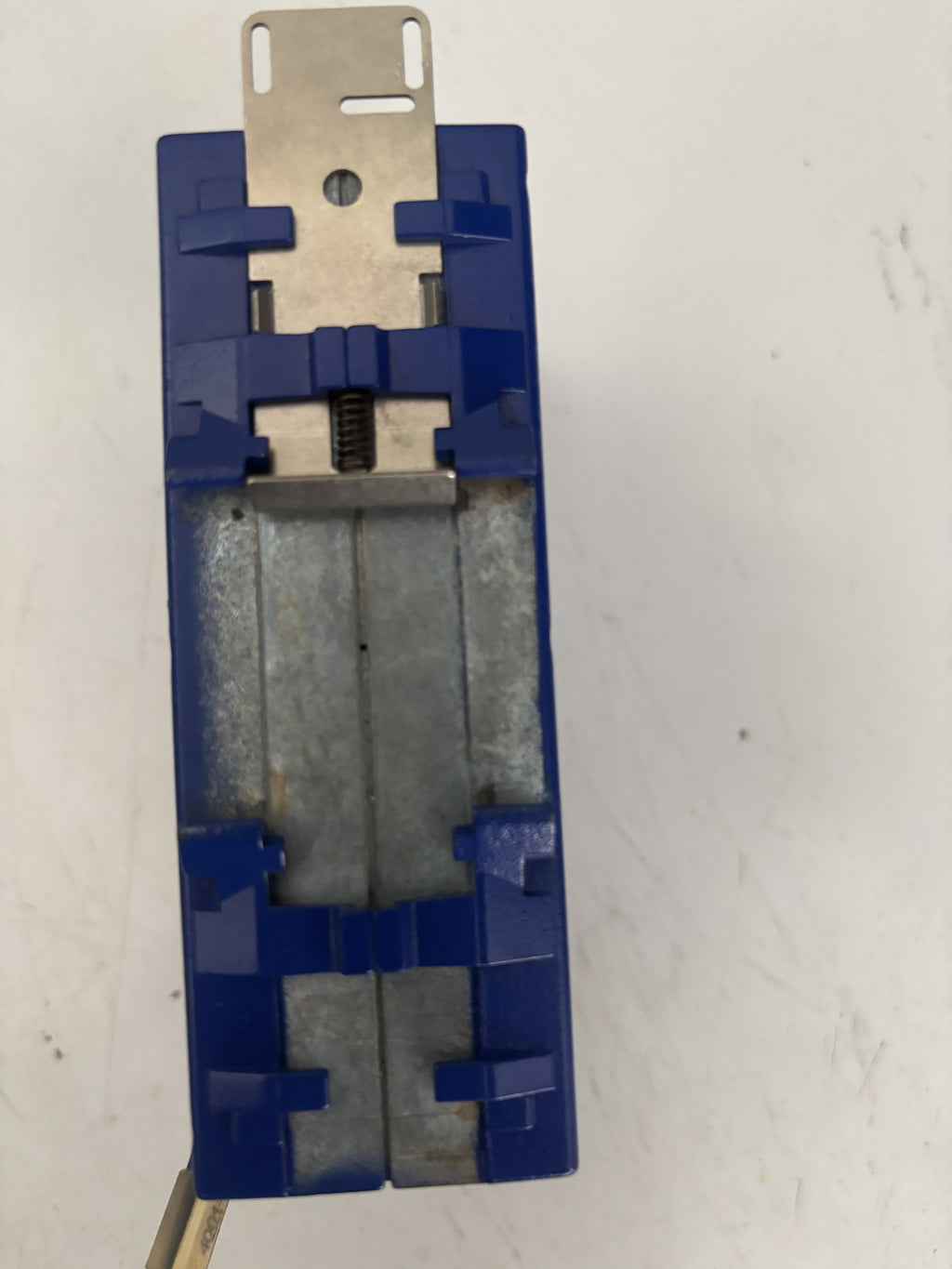

| Mounting | DIN rail (35mm) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 10–95% RH (non-condensing) |
| Protection Rating | IP30 |
| Dimensions (W x H x D) | ~35 x 120 x 75 mm |
| Weight | Approx. 400 g |
| Certifications | CE, UL, cUL, FCC |
