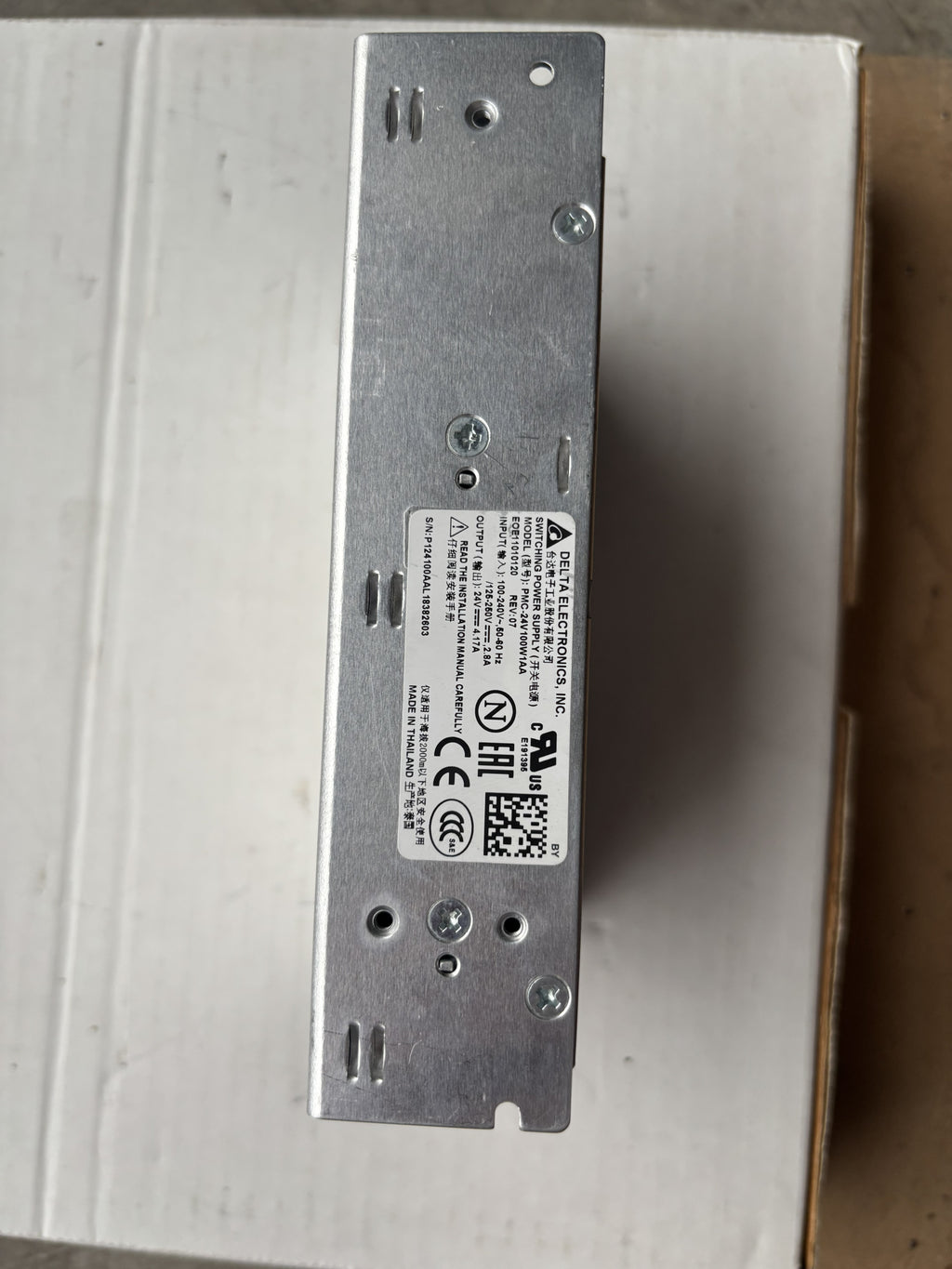

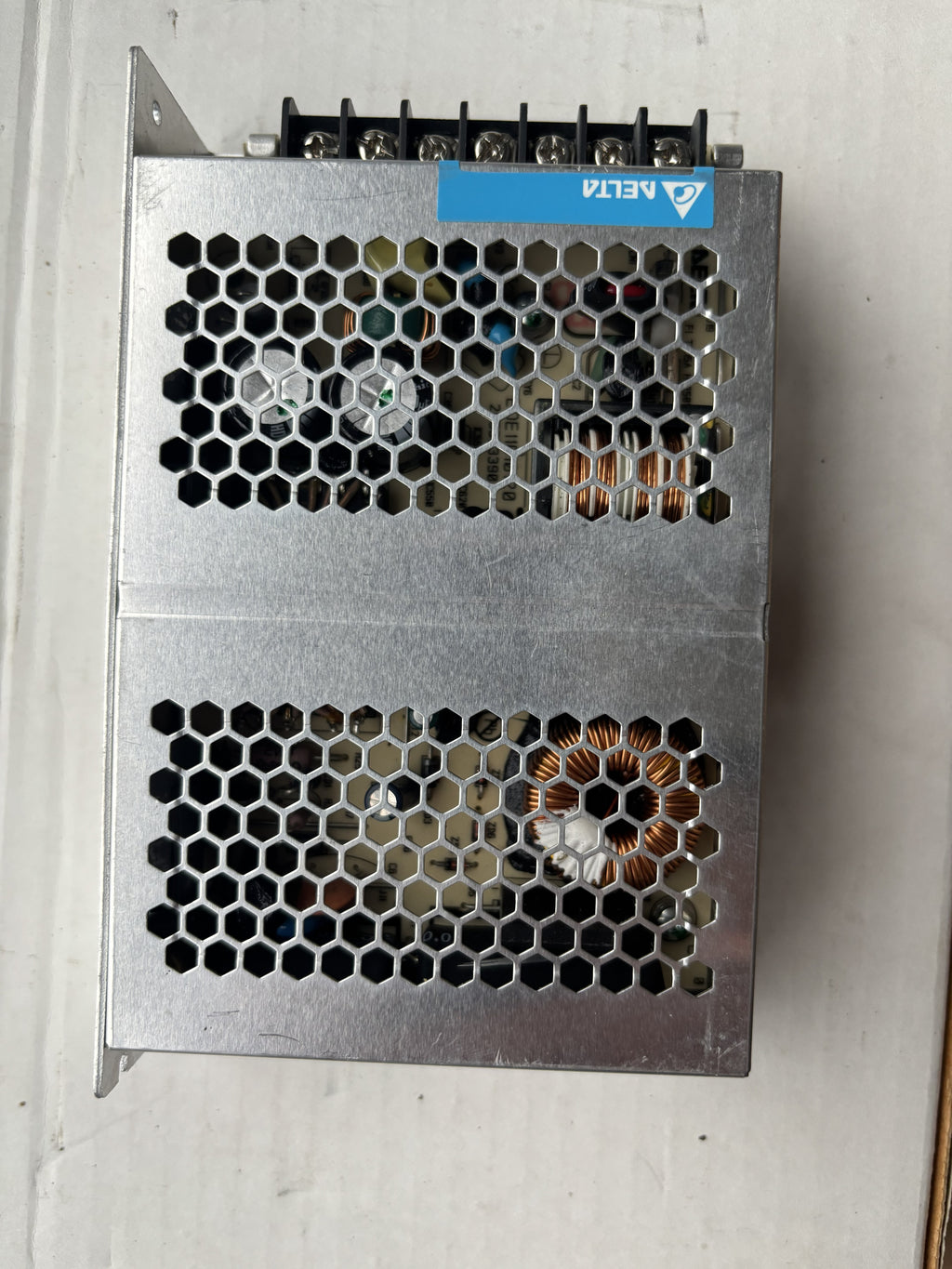

Delta PMC-24V100W1AA 24V 100W 4.17A Panel Mount Power Supply
$65.00
Skip to product information
Delta PMC-24V100W1AA 24V 100W 4.17A Panel Mount Power Supply
$65.00
The Delta PMC-24V100W1AA is a compact panel-mount AC-DC power supply from Delta — one of the world's largest power supply manufacturers. Built with a full corrosion-resistant aluminum casing, it withstands shock, vibration, and harsh industrial environments while delivering a stable 24V/4.17A output. The universal AC/DC input and no-derating across the full input range make it a reliable worldwide solution for control cabinets, automation panels, and industrial machinery.
- Brand: Delta Electronics
- Series: PMC Panel Mount
- Part Number: PMC-24V100W1AA
- Type: Panel Mount AC-DC Power Supply
- Condition: New Industrial Part
Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage (AC) | 85–264 VAC (universal, no derating across full range) |
| Input Voltage (DC) | 125–375 VDC |
| Output Voltage | 24V DC |
| Output Current | 4.17A |
| Output Power | 100W |
| Mounting Type | Panel Mount |
| Operating Temperature | -10°C to +70°C |
| Overvoltage Protection | Yes |
| Overload Protection | Yes |
| MTBF | >700,000 hours (Telcordia SR-332) |
| Housing | Full corrosion-resistant aluminum |
| Shock & Vibration | IEC 60068-2-6 compliant |
| Dimensions (L x W x D) | 158 x 97 x 38 mm (6.22 x 3.82 x 1.5 in) |
| Weight | 0.41 kg (0.90 lb) |
| Safety Certifications | CB Certified, IEC/EN/UL 60950-1 |
